Lightweight supply chain and asset monitoring toolkit for shipment or storage of sensitive goods.

Logger360 is a system developed by EmerTech as a supply chain and assets monitoring toolkit that allows the tracking and monitoring of sensitive goods throughout any phases of the supply chain cycle e.g. loading, transport, transit, storage etc... With Logger360 you can easily turn any box into a smart box by simply adding our small data logger IoT devices. Our data loggers are small lightweight trackers that scan and record their surroundings silently including humidity, temperature, and movements i.e shake, kick, tilt, drop.

You can also define designated areas to monitor in order to detect and record when goods are inside a specific areas, as well as designated staff or equipment using wearable beacons that can be used by staff or mounted on equipment to record interactions.

Data Logger Devices

The small and wireless data logging trackers record independently (no need for any connection) and silently, their surrounding events and parameters:

  • Temperature
  • Humidity
  • Movements - move, drop, tilt, shake, kick
  • Areas - stand-alone beacon devices mark significant locations such as warehouses or stores.
  • Staff or Equipment - wearable beacons which can be used by staff or mounted on equipment to record interactions.

Characteristics:

  • Battery 4-12 months, depending on number of operations
  • Temperature range -40°C to +85°C
  • Weights less than 10g
  • Waterproof
  • Accessible distance up to 50m (BLE 5 - in ideal conditions, may vary)
  • NFC support (optional)
  • Fully encrypted, permission management available

Mobile Applications (Android & iOS)

We have 2 mobile applications for Android and iOS, available on Google Play and Apple Store.

LOGGER360

The LOGGER360 mobile App (Android and iOS) allows to interact with the tracker, initialise and configure them, check the conditions of storage and transportation organized by metrics, and download the data collected.





BLE360

The BLE360 mobile App (for Android and iOS) is an utility application designed to allow you to configure the Bluetooth Low Energy (BLE) beacon devices that you can use to create designated areas, staff or equipment, that will get detected by our data loggers devices.



At any point of the transport or storage, for example after the goods are received, authorized users can check the data recorded by the the data loggers and download the reports accordingly, for further data analysis.

Reports give you details about the storage and moving conditions i.e. if the temperature limits were exceeded, the humidity levels, if the goods were shaken or the box flipped, and when it happened (and where, if using our add-on location beacon device).

Reporting

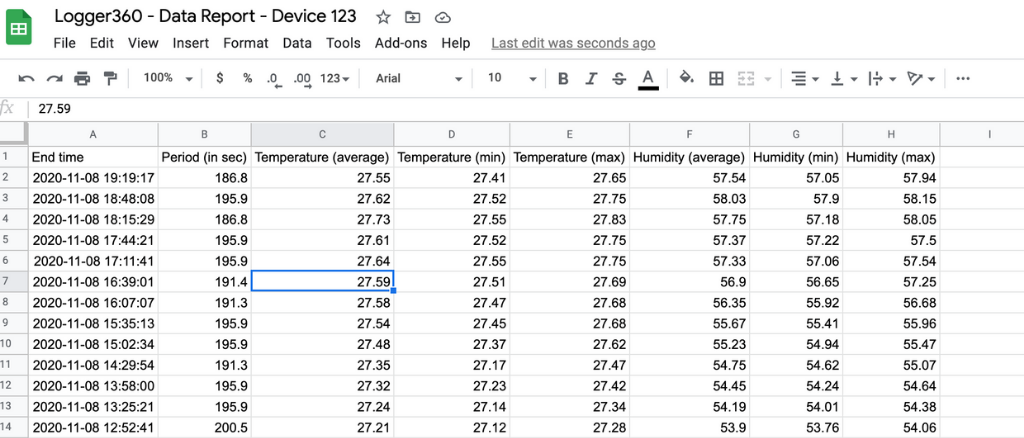

The history log of data collected by the tracker devices can be downloaded for each device either for each metric and for all metrics at once. The report can be exported as a .csv file, which is a format widely supported by many software (i.e. Microsoft Excel, Open Office, Google Sheets etc...). It allows further reporting and analysis based on the history log data.

Organize a demo or run a pilot

Get in touch with our team to find out more about our solution, request a brochure, plan a test pilot, and get started with Logger360. Because logistics and supply chain are complex industries with many various requirements, let's have a conversation, and discuss how Logger360 can help answer your specific needs.

Connected Add-ons & Remote Interaction

We are developing advanced features to enable for remote interaction with the data logger devices using connected nodes that we have developed to liaise between the trackers and the server. This will allow for automated and remote monitoring as well as notifications alerts when metrics get out of defined range (e.g. temperature or humidity exceeded the max limit for specific goods e.g. wine, cigar etc...).

We are also developing an infrastructure connected to blockchain in order to create tamperproof history logs (e.g. for audits) as well as secure and authenticate devices and users (this development in currently ongoing with a first Beta version planned for Q1 2021).

About Logger360

Logger360 is a product of EmerTech, a member company of the Incu-App Programme, HKSTP (Hong Kong Science & Technology Park)
